Product Description

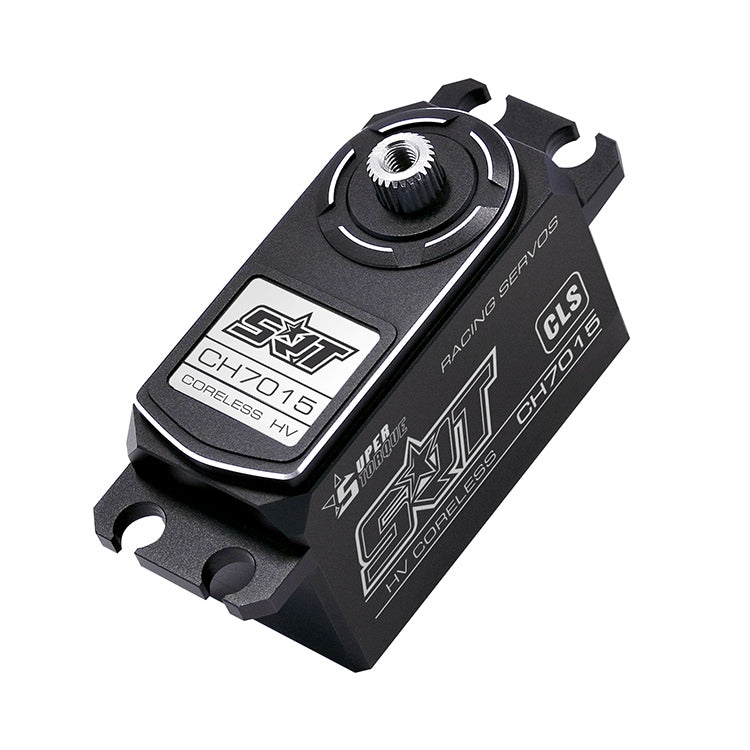

SRT Servo CH7015 1/10 Onroad/Offroad HV (0.07s/8.4V/15kg)

KEY FEATURES

& Ideal for 1/10 on road scale applications, as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& Titanium & Alu gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& HD 4096 Resolution
& 2 μsec dead band
& Superior Holding Torque
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case dimension
(mm)		 Weight
(G)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH7015 0.10 12.0/166.6 0.08 13.0/180.5 0.07 15.0/208.3 Titanium & Aluminum Coreless all-metal 41.0*20.0*26.4 52.0


Application :
SRT CH7015 1/10 On-road (Steering) HV Servo 1/10 Electric/ Car SRT CH7015 1/10 On-road (Steering) HV Servo 1/10 Nitro/ Car SRT CH7015 1/10 On-road (Steering) HV Servo 2WD/4WD off-road
SRT CH7015 1/10 On-road (Steering) HV Servo On-road

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
Control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degrees
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 12.0kg.cm (166.6 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive

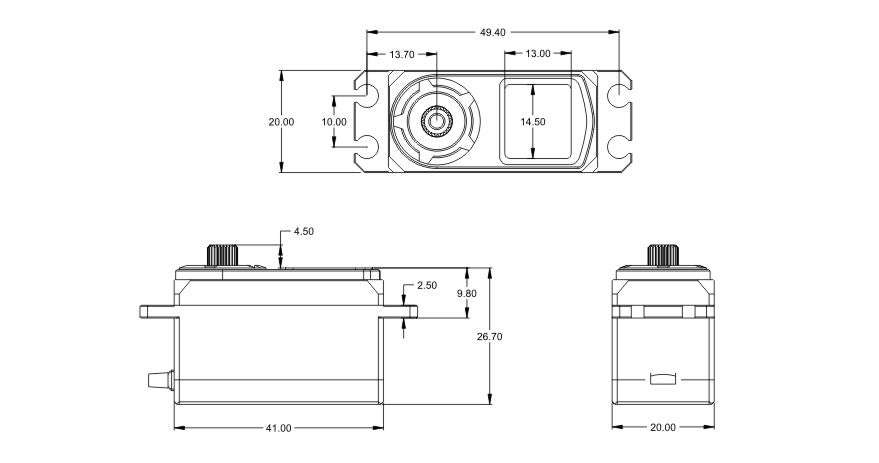

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
Connector wire length: jr 180 mm
