The Kyosho EP Fantom 4WD PZF T-33 from the Legendary Series is a unique 1/12 scale on-road racer that finally brings a legendary works-style specification to market as a complete kit. It blends an efficient 4WD concept with a 3-point rear suspension (3P) to deliver consistent traction, strong corner speed and stable straight-line behavior, even on lower-grip surfaces.

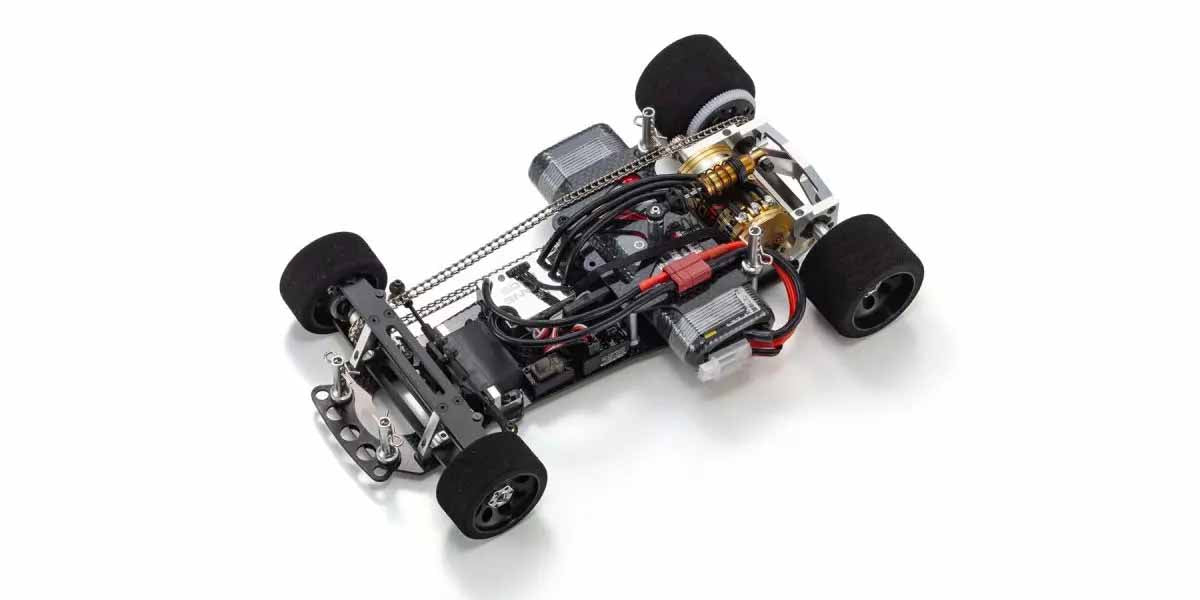

The drivetrain is built around Kyosho’s proven ladder-chain 4WD system, using chain drive to power the front wheels. Chain tension can be tuned via axle adapters and link count, and the chassis is precisely machined to maintain clearance and efficiency.

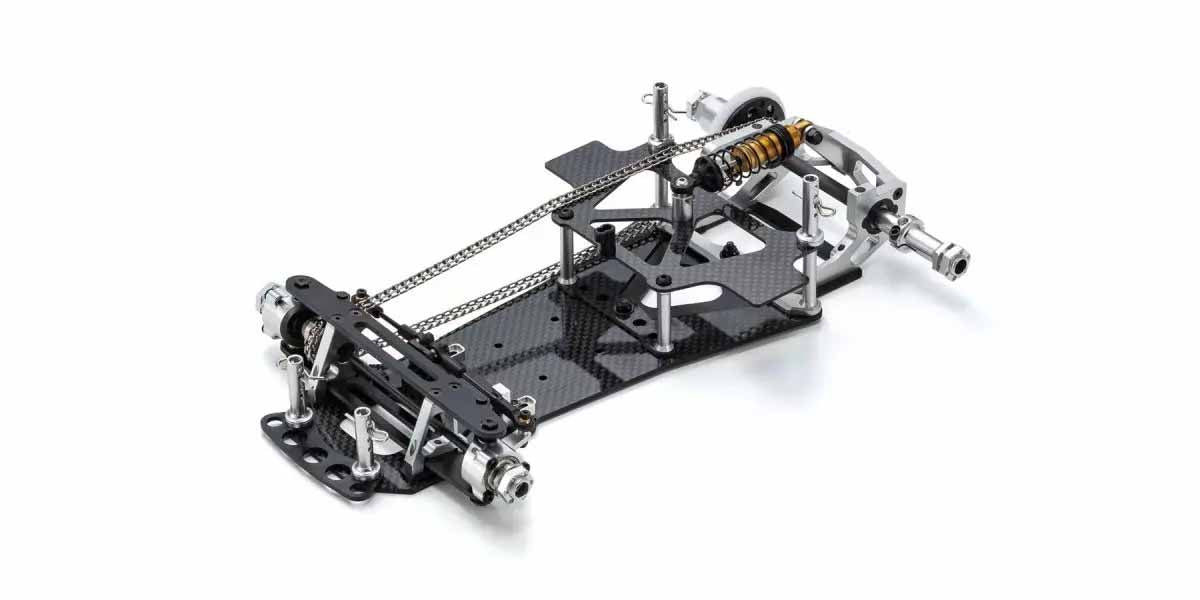

The platform combines a carbon main chassis and carbon upper plate with an FRP rear A-bar tuned for the right amount of flex to enhance rear tire grip. Newly developed ball-connect A-bar joints and a high-strength aluminum plate promote smooth suspension movement. O-rings at the joints help control roll and expand the setup range.

Up front, the kingpin coil-type suspension places springs above the knuckle arms to absorb surface vibration and maintain front grip on turn-in and corner exit. A dedicated, isolated servo plate helps prevent chassis flex from affecting steering and also optimizes Ackermann geometry for sharper, more consistent control.

For fast setup changes, a dial-adjustable rear oil shock is included as standard. The kit also includes a ball differential with adjustable tension (LSD-like effect) and a lightweight, high-rigidity 6 mm carbon diff shaft. Tires come pre-mounted and trued on black wheels, eliminating the need for tire prep and delivering repeatable performance right away.

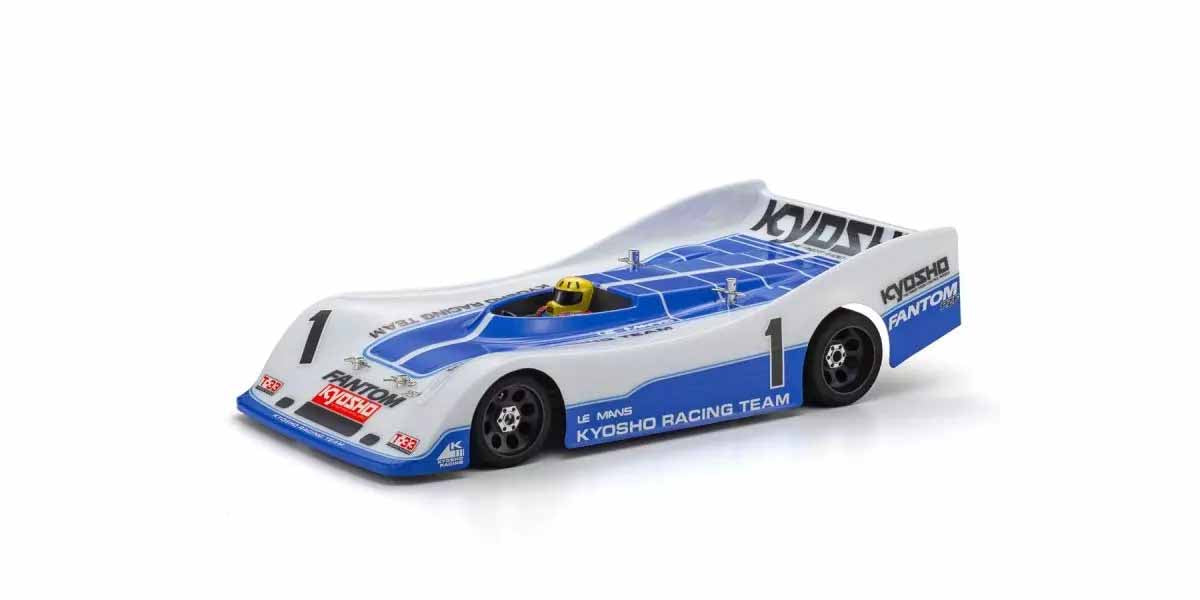

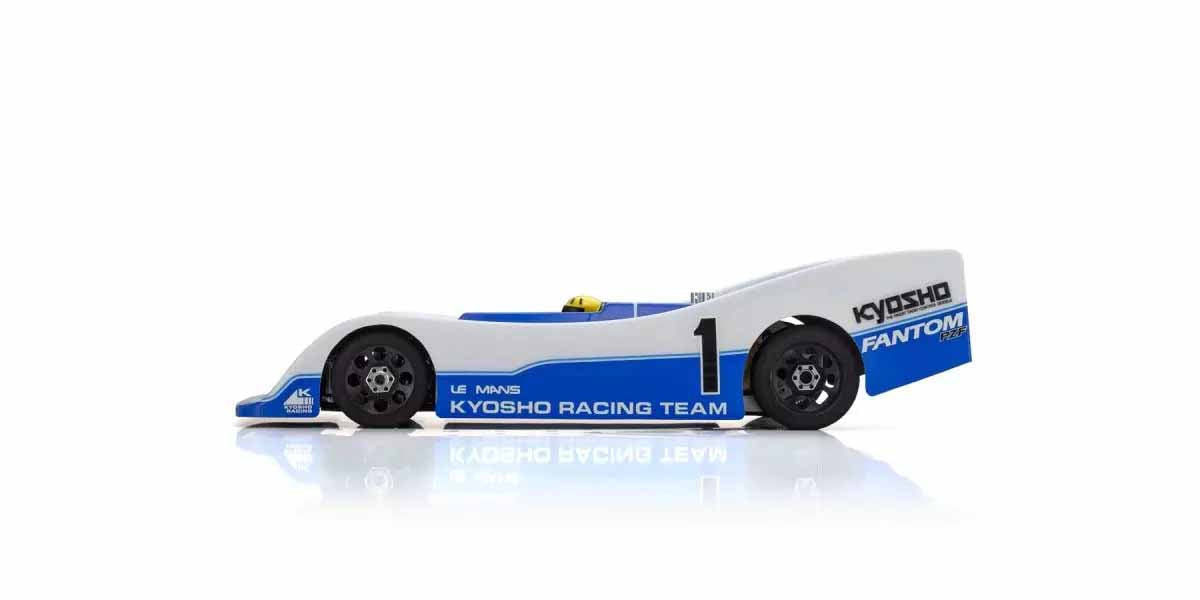

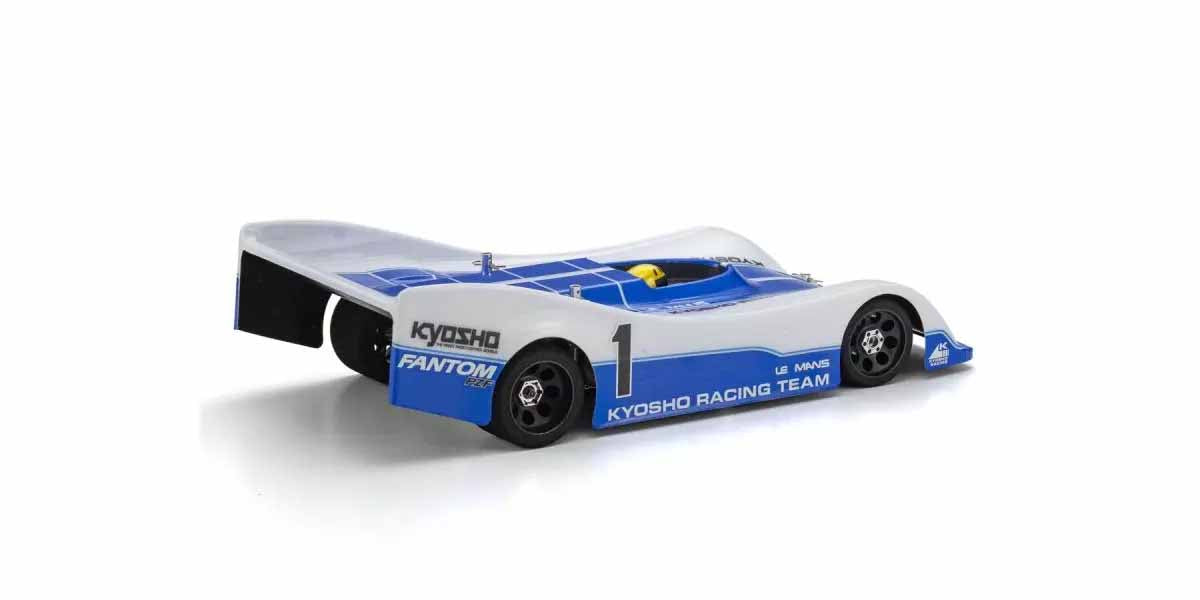

The iconic T-33 body is supplied unpainted with matching decals.

Technical Data

• Scale: 1:12
• Drivetrain: 4WD (chain-driven front), direct drive / 3P rear concept
• Wheelbase: 201–202 mm (adjustable)
• Length: 353 mm
• Width: 172 mm
• Height: 86 mm
• Tread: F 137 mm / R 133 mm
• Tires: F 48×23 mm / R 53×35 mm
• Gear ratio: 3.38:1
• Weight: approx. 900 g (with a suitably sized 2S LiPo)
• Motor: 540 class (not included)
• Note: Top speed depends heavily on motor choice, gearing, surface and track length.

Box Contents

• Unassembled chassis kit
• Pre-shaped adhesive tires (pre-mounted/trued on wheels)
• Unpainted T-33 body
• Decal sheet
• Tools: wheel wrench (12/4.0), 5.5/5.0 wrench, shock wrench
• Shock oil

Required to Complete

• 2-channel radio system with receiver
• Steering servo
• Electronic speed controller (ESC)
• 540 motor (minimum 15 mm shaft length)
• Battery pack to fit chassis (typical max size about 138×48×24.5 mm)
• Battery charger
• Transmitter batteries
• Polycarbonate paint and standard assembly tools
