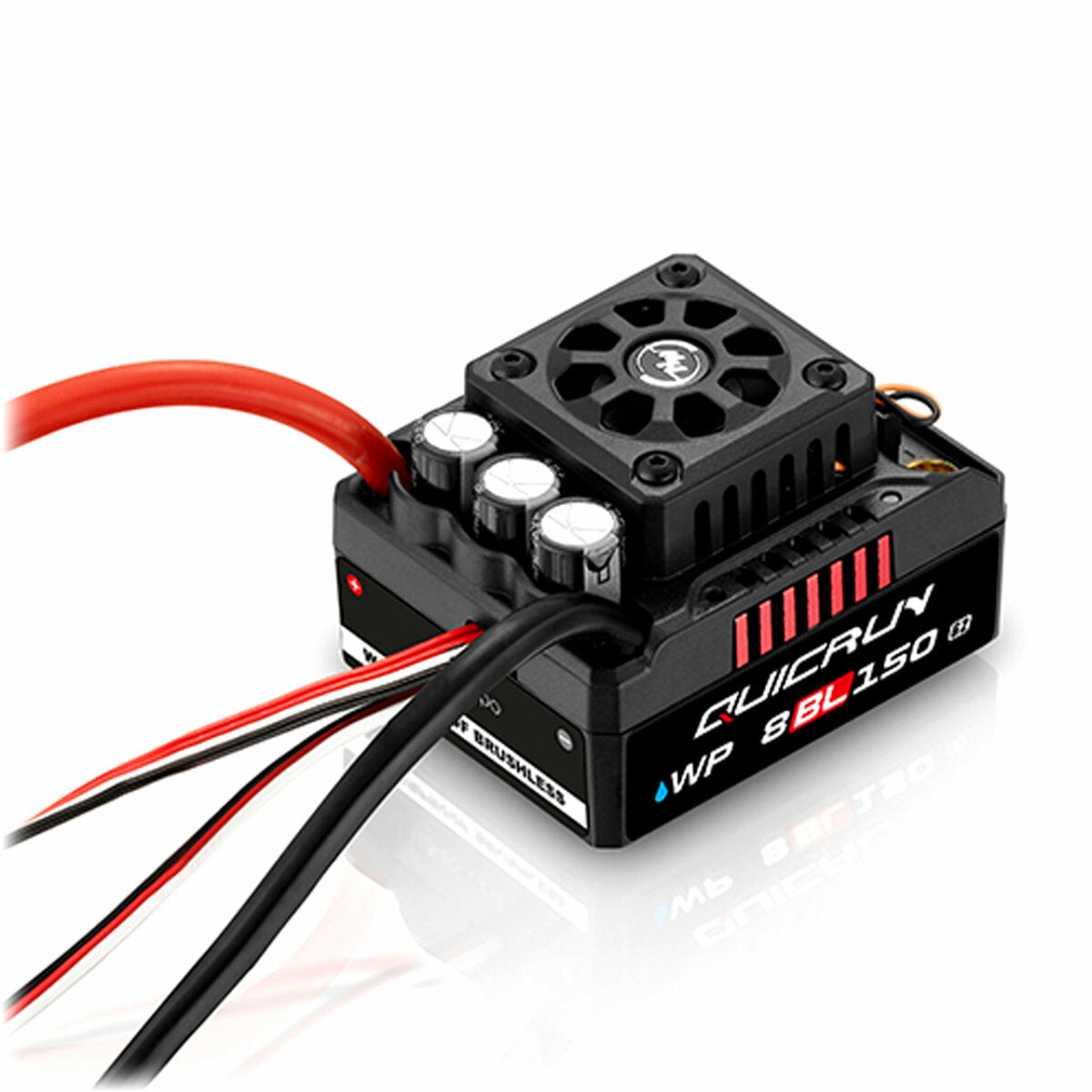

Hobbywing HW30109003 QuicRun WP8BL150 G2 Brushless Controller 150A 3-6s for 1:8

Thanks to its intelligent freewheeling technology, the second generation QuicRun WP 8BL150 controller is more efficient at low temperatures than its predecessor. But the expected increase in performance is not all that this G2 controller has to offer. The main focus was on the further development of the BEC. Previously only 6V at 3A, now switchable with 6V or 7.4V at a whopping 6A. The maximum current can even reach up to 12 amps. The BEC therefore ensures that the controller can now also be used with high-voltage servos.

The power board inside the controller is covered with a patented copper heat conduction rail to quickly dissipate the internal heat generated. In addition, the built-in fan creates an extremely reliable cooling system that ensures that the controller always has a safe operating temperature. The integrated overheat protection function for the 2040uF capacitors can also effectively prevent the controller from suffering major damage due to overload.

Characteristics

Protected against dust and splash water according to IP67
Programmable high performance switch mode BEC
Suitable for various powerful and high voltage steering servos
9 different acceleration programs from "soft" to very "aggressive" can be selected depending on the model and route.
Proportional brake with adjustable max. braking force and automatic brake
Various protective functions, e.g. against:
- Undervoltage from the battery
- Thermal overheating
- Throttle signal loss
- Condenser overheating
Independent programming port - No need to pull the throttle cable out of the receiver beforehand

Technical data

Type: Brushless Sensorless
Current (continuous/short): 150A/950A
Number of cells: 3-6S LiPo
BEC: 6V/7.4V with 6A (switch mode)
Waterproof: Yes (IP67)
Output: 6.5mm Gold (jack)
Programming: - LCD programming box G2
- LED programming card
- Programming interface
Dimensions: 60x48x40.4mm
Weight: 169.5g
Use: 1/8 Truck, Monster Truck
