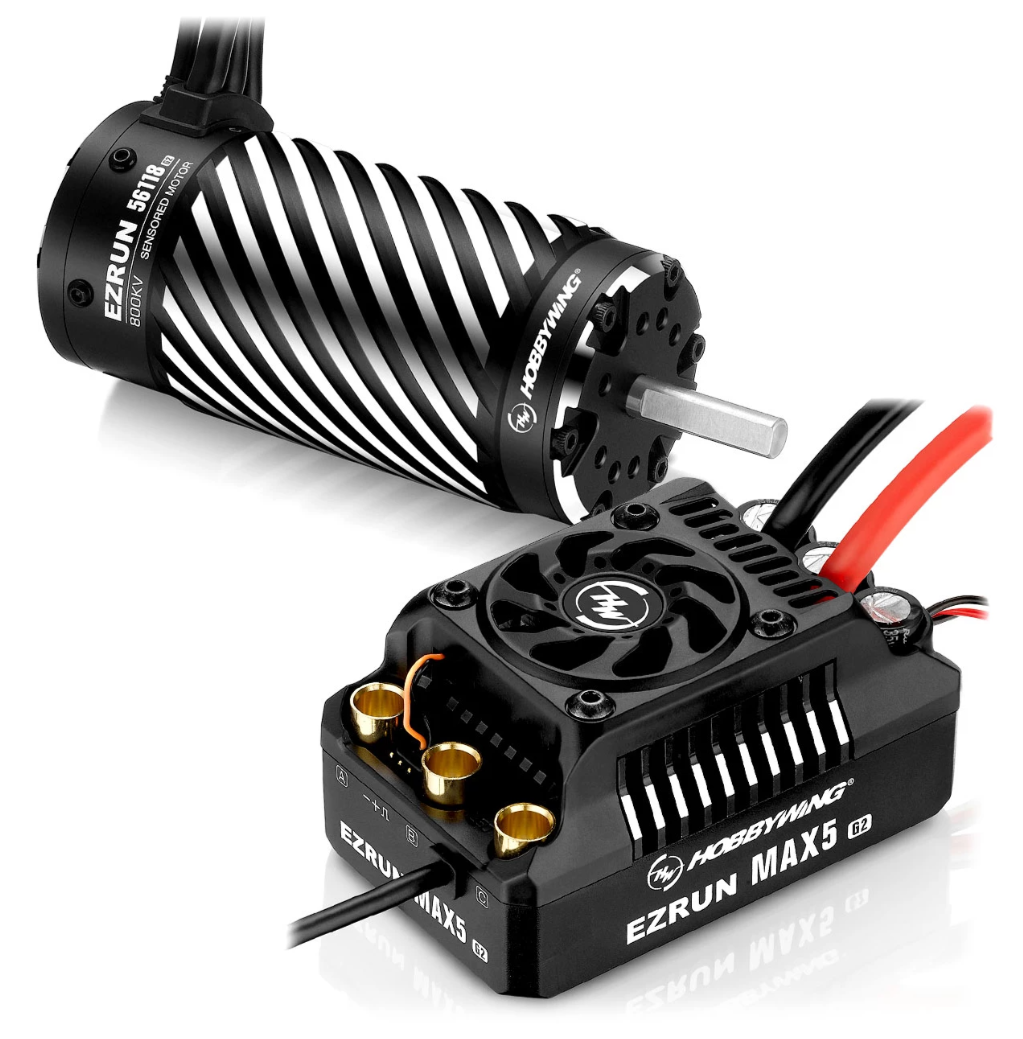

Maximum 1/5 power in perfect harmony: The EZRUN MAX5 HV G2 Combo with 56118SD G2 800kV motor delivers brutal power, precise sensor control and modern high-voltage technology for buggies and trucks.

The second generation of the MAX5 HV has been significantly redesigned: +18% more power , reduced heat generation and an improved sensor mode system with a waterproof sensor cable ensure greater efficiency, control and reliability – even under extreme conditions.

Why this combination?

✔ 250A continuous current / 1600A peak
✔ 6–12S LiPo support (ESC)
✔ 800kV Sensored Motor for 8–12S LiPo
✔ Up to 24° turbo timing (with 56118 G2 engine)
✔ 45% increased capacitor capacity
✔ Integrated motor overheat protection
✔ Data logging & 12 adjustable parameters

Explosive acceleration, stable high-speed performance and controlled response in sensor-controlled operation – perfect for heavy 1/5 scale vehicles.

Built for extreme conditions

• New waterproof sensor cable
• Water and dust resistant controller
• Robust design for off-road use
• Maintenance-friendly, disassemblable engine

Ideal for sand, gravel, mud and hard landings.

Technical data

Controller – MAX5 HV G2

• Type: Brushless Sensored
• Continuous/peak current: 250A / 1600A
• LiPo: 6–12S
• Engine limit:
  • 8S: KV ≤ 1200
  • 12S: KV ≤ 800 (56118 Motor)
• BEC: 6V / 7.4V / 8.4V @ 8A (Switch Mode)
• Fan: Yes (via internal BEC)
• Programming: LED card, LCD G2 box, OTA module
• Waterproof: Yes
• Dimensions: 94.5 × 59.4 × 50.9 mm
• Weight: 428.5 g

Motor – 56118SD G2 800kV

• Type: Brushless, Sensored
• kV: 800kV
• LiPo: 8–12S
• Idle current: 6.9A
• Number of poles: 4
• Diameter: 56 mm
• Length: 119.2 mm
• Shaft diameter: 8 mm
• Wavelength: 30 mm
• Weight: 1277 g

Ideally suited for

• 1/5 Buggy
• 1/5 Truck
• High-Voltage 8–12S Setups
• Extreme off-road conditions
• High-performance large-scale projects

Scope of delivery

• 1× EZRUN MAX5 HV G2 controller (250A)
• 1× 56118SD G2 800kV Motor
• 1× User manual (English)
