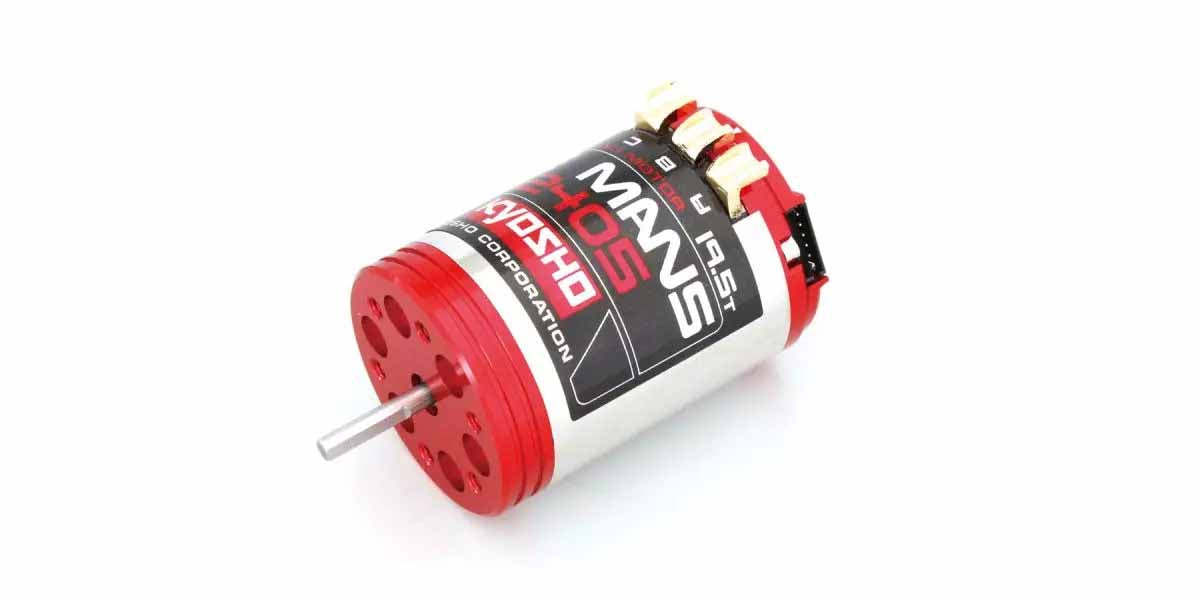

The name Le Mans has stood for uncompromising Kyosho motor quality since the 1980s. With models like the Plazma, Fantom, Optima, and Ultima, Kyosho has already made a lasting impact on the RC racing scene. Now, with the Le Mans 240S brushless motor, this legendary series reaches its highest performance level to date.

The Le Mans 240S was specifically developed for sprint races (approximately 4 minutes) and delivers exceptionally high RPM with excellent efficiency. The 19.5T version is ideal for 2WD race cars where controllable power, efficiency, and consistency are crucial.

Thanks to its dustproof design without cooling holes, the motor is particularly suitable for vehicles with a rear-engine layout or for use on dusty tracks. The high-quality workmanship, featuring a nickel-plated motor casing , CNC-machined end caps, and gold-plated connectors, combines modern racing technology with classic Le Mans style.

A precisely adjustable timing ring with an easy-to-read scale allows for simple fine-tuning, while the optimized internal construction ensures high durability and reliable performance – even under racing conditions.

Features & Highlights

• High-performance brushless motor for sprint races
• 19.5 turns – ideal for 2WD racing
• Dustproof design without cooling holes
• Nickel-plated engine casing with mirror finish
• CNC-milled end bells with red anodizing
• Classic design with 6-point front bell
• Precisely adjustable timing with scale
• Gold-plated U-shaped A/B/C terminals for easy soldering
• High efficiency with low heat generation

Technical data

• Turns: 19.5T
• Operating voltage: 1–3S LiPo (up to 12.6V)
• Speed @ 7.4V: 19,092 RPM
• KV: 2580 RPM/V
• Max. current: 33A
• Maximum power: 280W
• Efficiency: 89%
• Weight: 172 g
• Motor diameter: 35.8 mm
• Motor length: 51.2 mm
• Wavelength: 15 mm
• Shaft diameter: 3,175 mm
