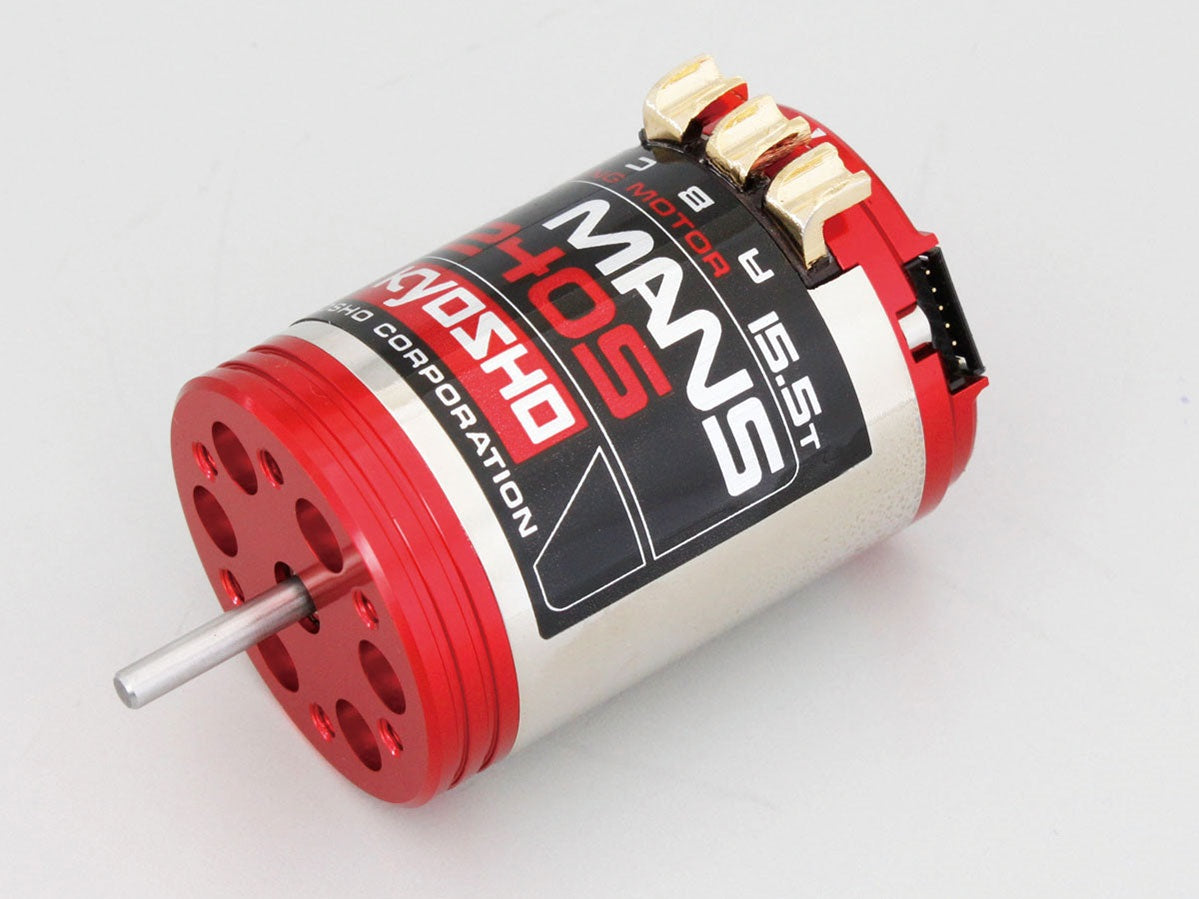

The Kyosho Le Mans 240S BLS 15.5T stands for uncompromising racing performance and continues the legendary success story of the Le Mans engines that made Kyosho world-famous back in the 1980s. This version was specifically developed for high-performance 4WD racing vehicles and demanding sprint races.

With its high power output, excellent 90% efficiency, and very smooth power delivery, the 240S 15.5T offers an ideal combination of speed, control, and reliability. Its speed is significantly above the class average, ensuring powerful acceleration without overloading the drive system.

The dustproof motor design without cooling holes reliably protects the internal components from dirt and makes the motor particularly suitable for rear-engine layouts and dusty racetracks. Visually, the Le Mans 240S impresses with its high-quality finish, featuring a nickel-plated engine casing and CNC-machined end caps with a red anodized surface – a successful combination of modern technology and classic racing style.

Features & Highlights

• High-performance brushless motor for 4WD racing vehicles
• 15.5 turns for maximum power and high top speed
• Dustproof design without cooling holes
• Nickel-plated engine casing with mirror finish
• CNC-milled end bells with red anodizing
• Precisely adjustable timing with a clearly visible scale
• Gold-plated U-shaped A/B/C terminals for easy soldering
• High efficiency and low heat generation

Technical data

• Turns: 15.5T
• Operating voltage: 1–3S LiPo (up to 12.6V)
• Speed @ 7.4V: 18,870 RPM
• KV: 2550 RPM/V
• Max. current: 38A
• Maximum power: 320W
• Efficiency: 90%
• Weight: 179 g
• Motor diameter: 35.8 mm
• Motor length: 51.2 mm
• Wavelength: 15 mm
• Shaft diameter: 3,175 mm
