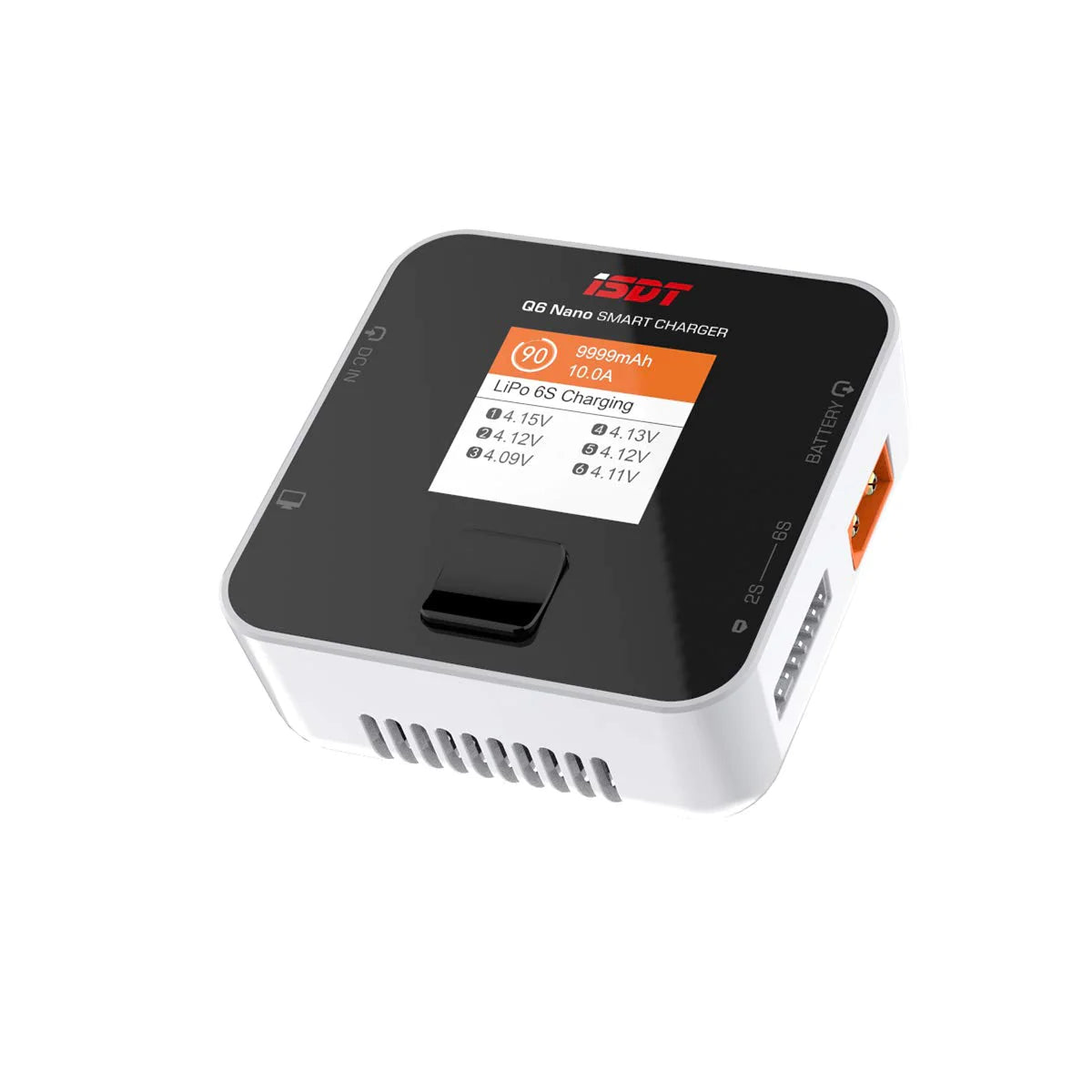

ISDT Q6 Digital Nano Lipo Charger - DC / 200W / Smart Portable / 2-6Cell

ISDT Q6 Digital Nano Lipo Charger - DC / 200W / Smart Portable / 2-6Cell

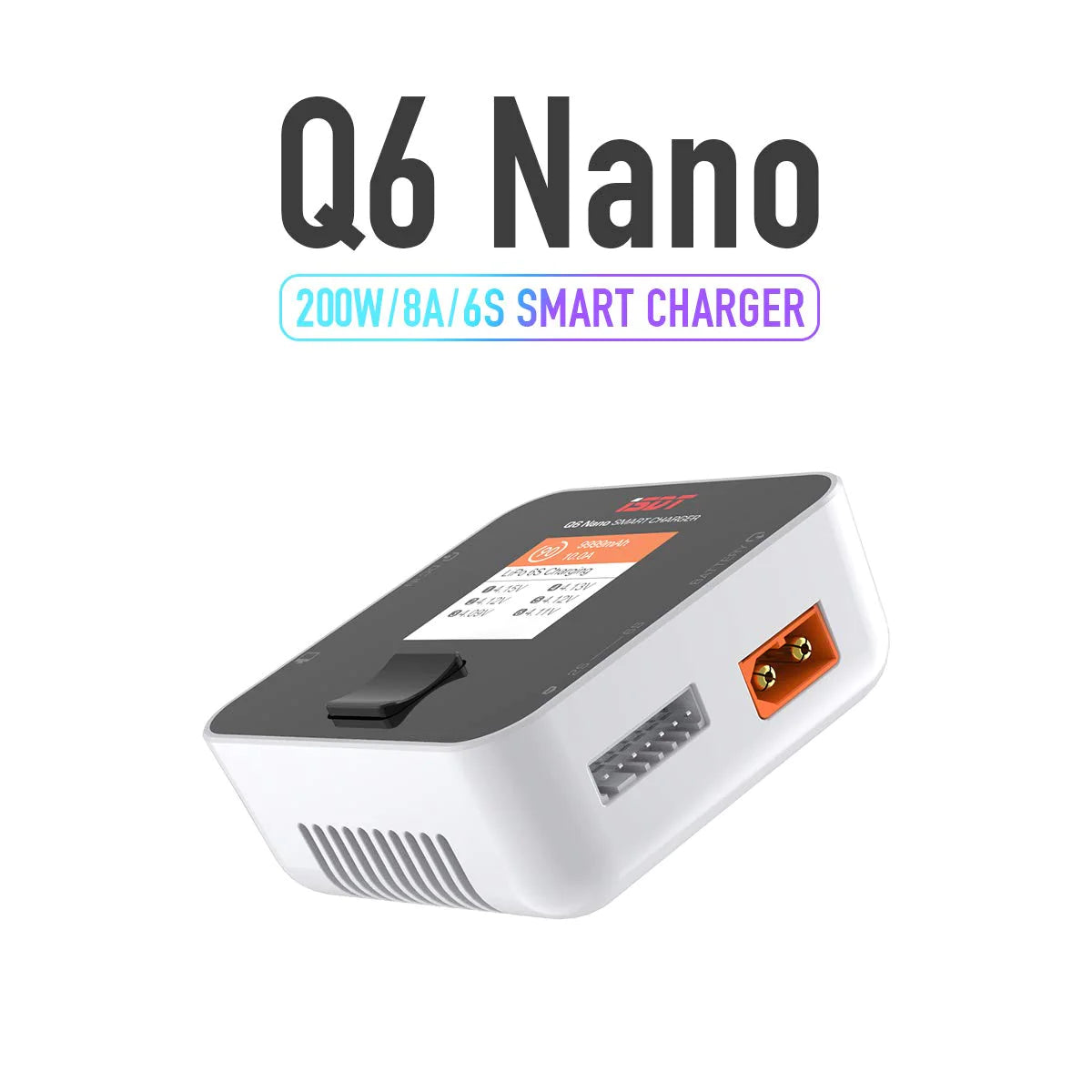

√√New generation of pocket chargers ：200W high power / max. 9A charging current/battery for 2~6S.

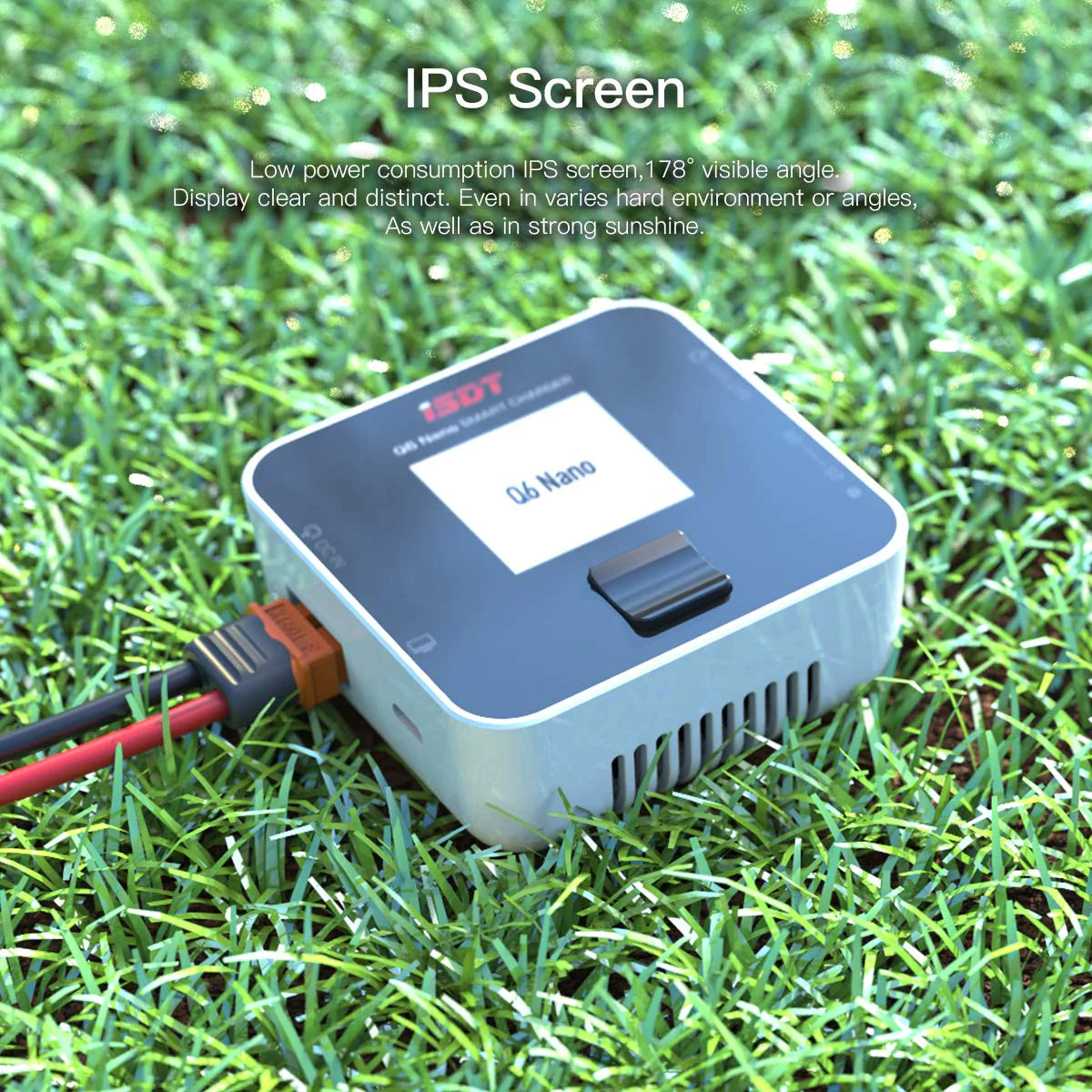

√√IPS screen ：low power consumption, 2.4 inch IPS screen, automatic brightness adjustment, 178° viewing angle, clear and distinct display even in difficult environments or angles, even in strong sunlight.

√ √Powerful cooling system： Artistically designed cooling air duct, active cross-flow cooling air duct design, ball bearing fan, with precisely manufactured aluminum alloy fins and high-tech silicone thermal pad, constructing a highly efficient heat dissipation system.

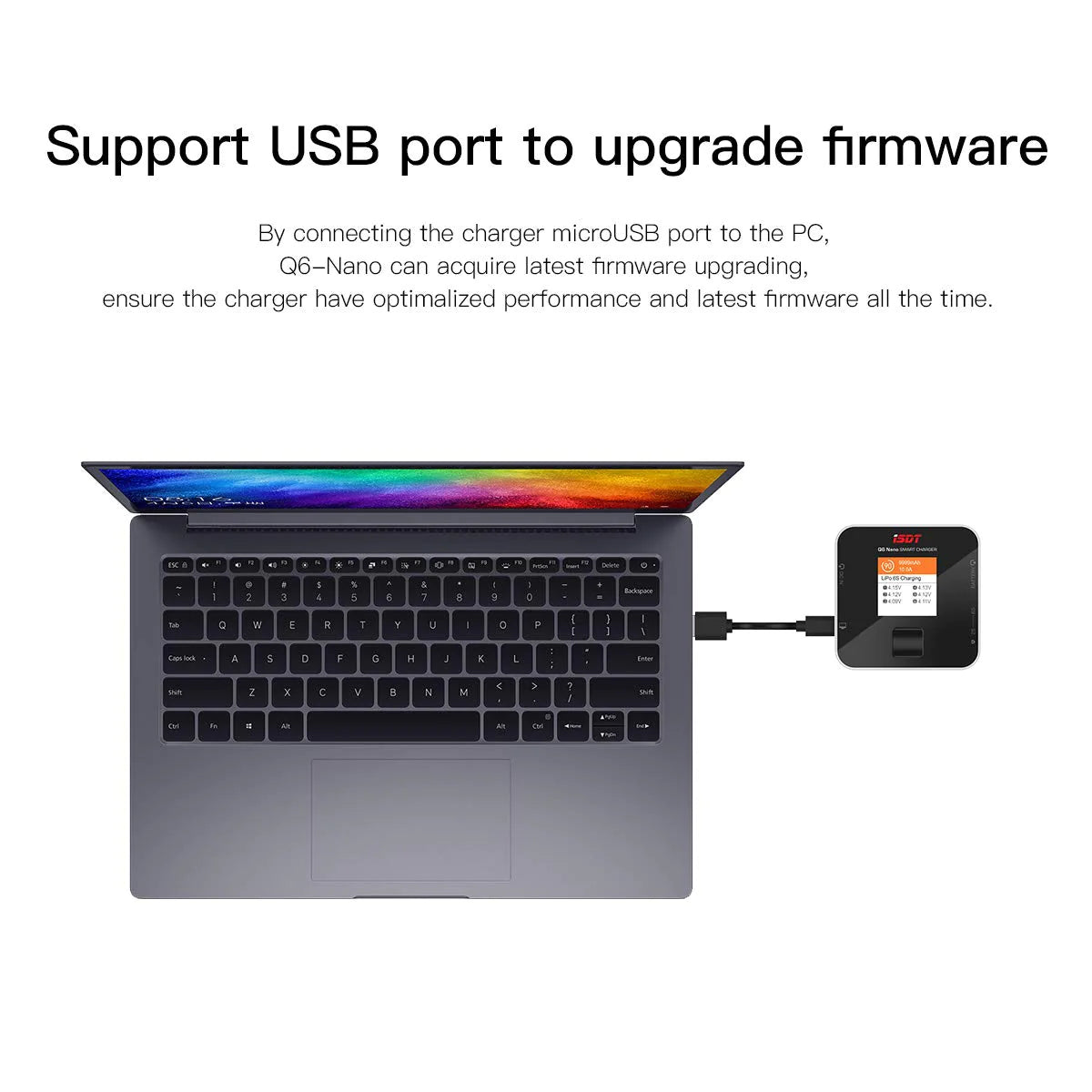

√√Upgradable firmware , updated scOS 2.0：By connecting the charger's micro USB port to the PC, all series can receive the latest firmware upgrades, ensuring that the charger has optimal performance and the latest firmware at all times.

√ √Excellent external design： Round like a pebble. The refined design gives it a pleasant appearance and excellent touch. As if you were holding a piece of pebble in your hand.
Please note before purchasing: The connection cable of this charger is XT60 interface, the input mode is DC input, input voltage: DC 7-32V, maximum input current: 12A, output voltage: 0-30V, charging current: 0.1-8.0A, other parameters can be viewed in the long description of the product list. If you have any other questions, please contact us.
description of the product


This small charger is specifically designed for a smart charging system and has twice the capacity of most Lite chargers. Featuring a 2.4-inch LCD screen with automatic brightness adjustment and a 178° viewing angle, the screen is still clearly visible even in strong sunlight.



iSDT has reduced the size of the Q6 charger by 50% and introduced a new round design that easily fits in your pocket. With a highly efficient cooling system, optimized internal construction and digital power delivery technology, this charger is perfect for all your charging needs.



The Q6 Nano charger boots up in seconds. Improved accuracy, 20x speed and one-button metal shutter control ensure an optimal charging experience.



Description:

Input voltage: DC 7-32V

Maximum input current: 12A

Output voltage: 0-30V

Charging current: 0.1-8.0A

Discharge current: 0.1-3.0A

Maximum load capacity: 200 W

Max. discharge capacity: 5 W

Compensation current: 0.8A / cell

balancing cells: 2-6S

Battery type: LiFe, Lilon, LiPo, LiHV (1-6S); NiMH, Cd (1-16S); Pb (1-12S)

Display: 2.4 inch 320 x 240 IPS LCD

Operating temperature: 0-40 °C

Storage temperature: -20 - 60 °C.

Dimensions: 72 x 72 x 32 mm

Weight: 119g

Languages: English, German, French, Spanish, Japanese, Traditional Chinese, Simplified Chinese


Features:

ARM Cortex-M4.

20x increased speed.

2.4 inch IPS display with automatic brightness.

High speed ball bearing fan increases cooling performance by 300%.

ARM 32-bit high-speed processor.

Update the firmware using your PC.

Package includes:

1 x ISDT Q6 Nano Balance Charger.

1 x manual
