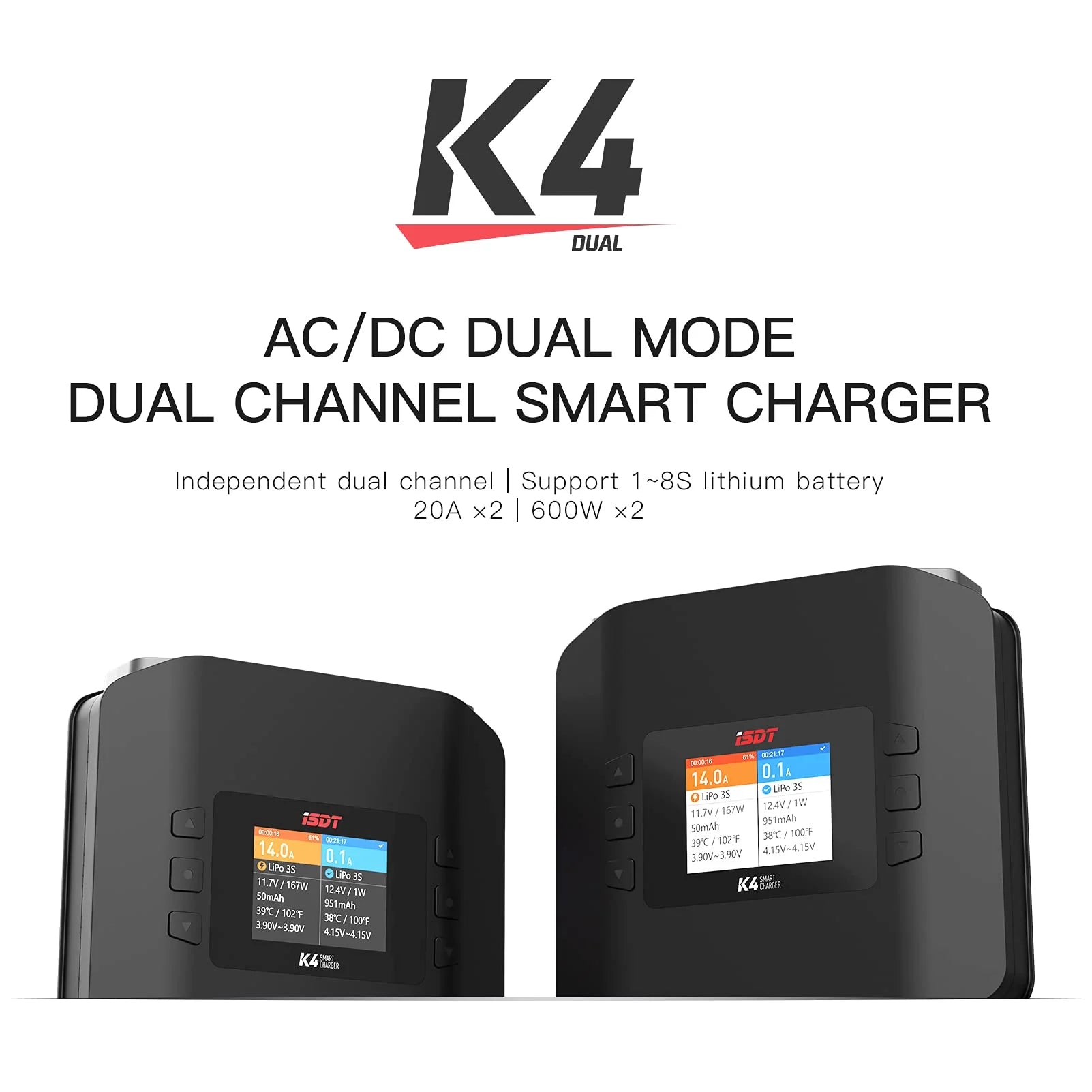

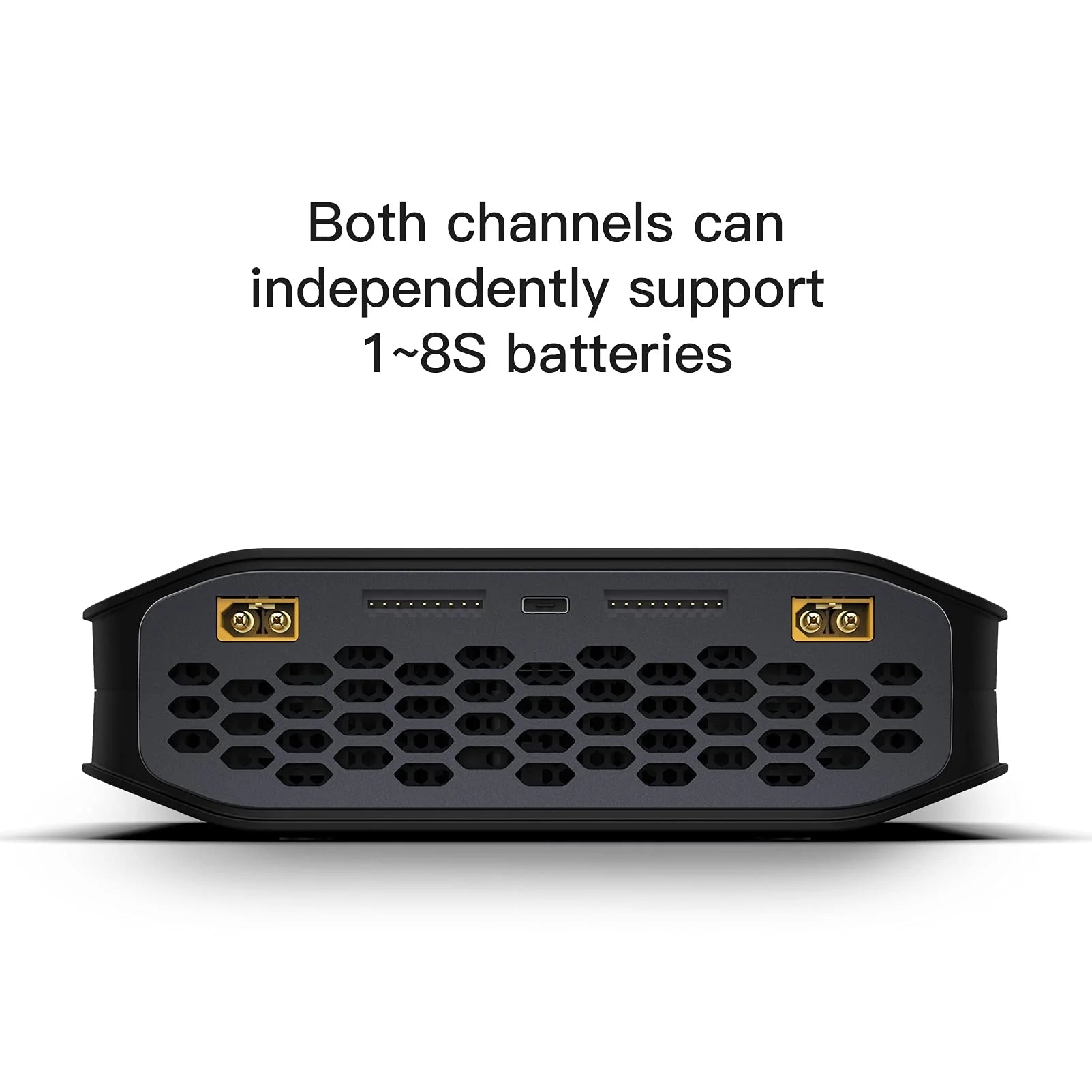

ISDT K4 LiPo Charge/Discharge Cycle Mode Smart Charger - AC 400W / DC 600Wx2 / with Smart Remote Mobile Operation

AC/DC Dual Modes Lipo Charger: Our lipo charger has AC 400W/DC DC600Wx2 dual input model with independent dual channel, charging current: 30AX2, max. input current: 60A. Advanced crafty cooling air channel for high efficiency heat dissipation. K4 can latest firmware -Upgrade purchase, make sure the charger have optimized performance and latest firmware all the time.

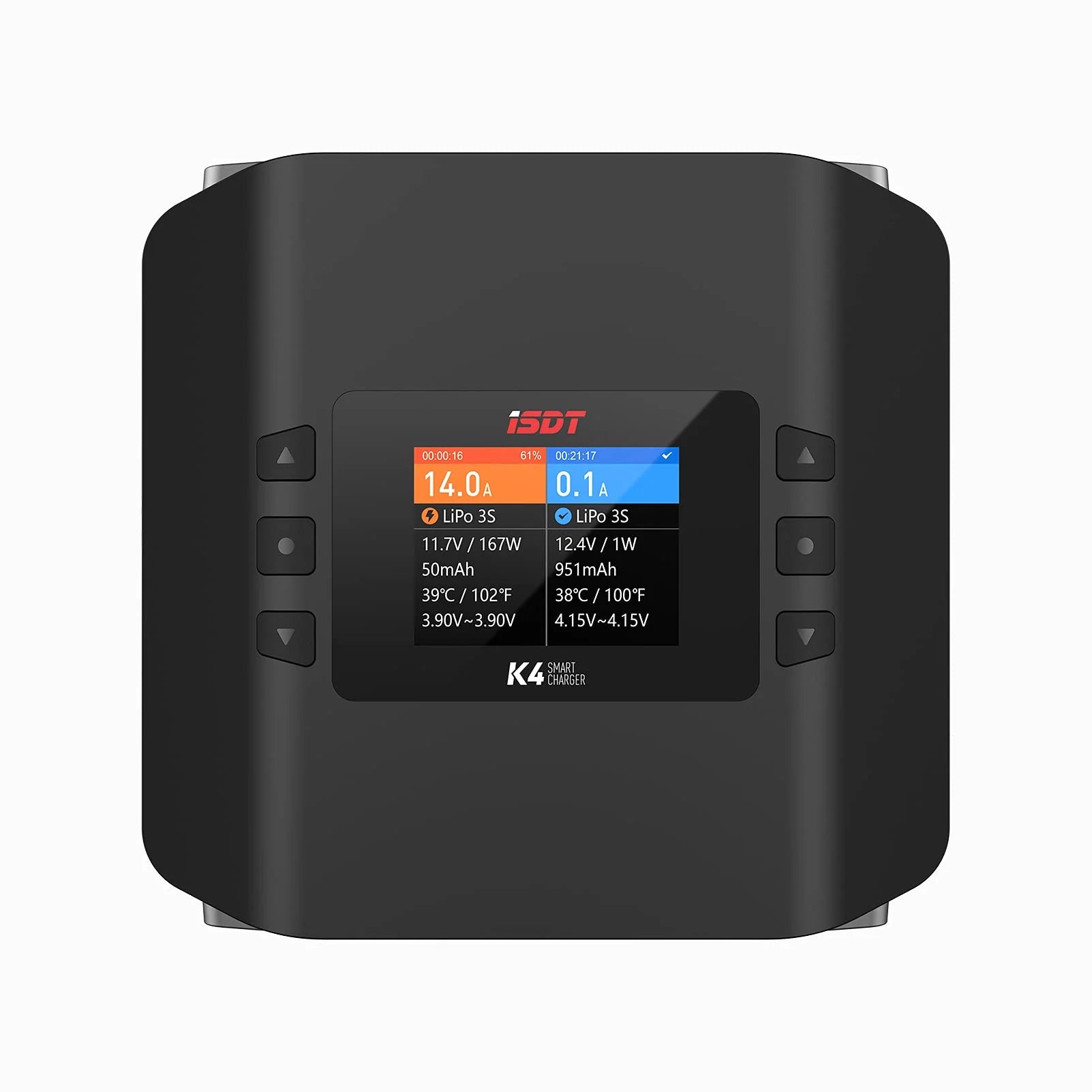

ISDT K4 Smart Display: Full color LCD, touch panel, it shows the entire charging process for batteries, large screen display can show voltage, current, charging time, mode, battery type, internal resistance and battery capacity being charged, easy setup and manual operating modes.

K4 Charger Multi-Function: It supports BattAir BT connection and mobile operation, comes with Li-ion and LiPO balancing, fast charging, data storage, cycle charging, discharging function. It will automatically stop charging after it is fully charged.

ISDT charger Various battery types Compatibility: All-in-one control for LiFe, LiIon, LiPo 1~8S; LiHv, ULiHv 1~7S; Pb 1~14S; NiMH/Cd 1~18s batteries, automatic battery type recognition with intelligent charging algorithm adjustment.

Multi-application: Aluminum alloy shell with good handfeel and nice apperance, our product can be widely used in RC airplane/RC drone, portable power, portable devices, remote control car etc.Auto adjustmentfeature on charging parameters and automatic safety shutdown for best charging performance.To help extend battery life with more reasonable.
Description of the product


Specifications:

• Input voltage: AC 100~240V / DC 10~30V
• Output voltage: DC 1~30V
• Max. input current: DC 35A
• Charging current: 0.2~20A x2
• Discharge current: 0.2~3A x2
• Compensating current: 1.5A/cell Max
• Max. discharge power: 30W x2
• Max. charging power: AC 400W / DC 600W x2
• Abnormal voltage alarm: support
• Incorrect cell count setting alarm: Supported
• Supported battery types and number of cells: LiFe, Lilon, LiPo 1~8S, LiHv 1-8S, Pb 1-12S, NiMH/Cd 1-16S
• Parallel charging power and current: 800W/35A
• Parallel discharge power and current: 30W/3A
• Working temperature: 0~40℃
• Storage temperature: -20℃~60℃
• Dimensions: 142x135x64mm
• Weight: Approximately 700g

Packaging included:

1X ISDT K4 charger
