ISDT K2 ZIP

The new iSDT K2 Zip charger is a powerful, compact all-round charger and the direct successor to the K2 Air.

The K2 Zip supports the BattAir system. The data from the BAPs (BattAirPlugs) is transmitted wirelessly to the K2 Zip.

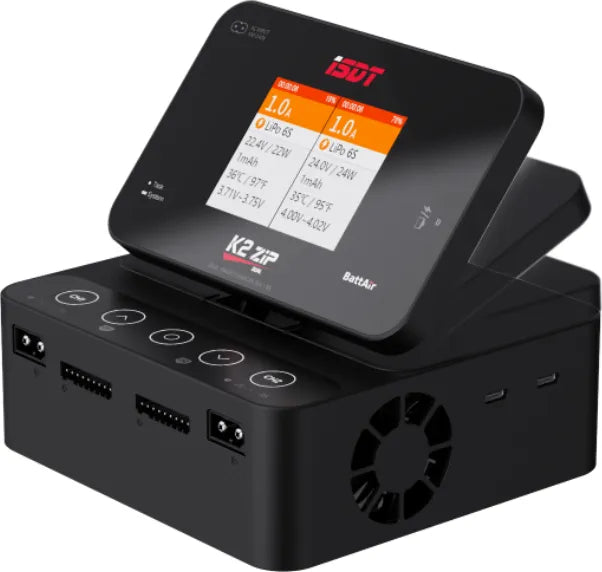

The foldable screen ensures that the display is perfectly legible even under poor conditions. The new touch buttons make operation easier and ensure smooth usability. Instead of the previous max. 6s LiXx, up to 8x LiXx cells are now possible!

Thanks to the integrated power supply with 200W output, you can quickly charge your device at home using a 230V socket with up to 200W of power, which is distributed per port as needed.

If the K2 Zip charger is supplied with direct current, e.g. from a battery or an external, more powerful power supply, up to 2x 500W power is possible! (> 24V required!)

The 200W power supply is sufficient to charge a 6s LiPo with up to 7.9A, or 2x 6s LiPo with up to 3.9A

If an external voltage source such as a car battery or a power supply with >24V is used, up to 500W of power can be drawn from each output, which corresponds to up to 19.8A per port!

2-8s LiXx cells can be charged, in parallel mode up to 800W is possible. The extremely powerful balancer delivers up to 1.5A per cell, so your batteries are optimally cared for and maximum performance is guaranteed.

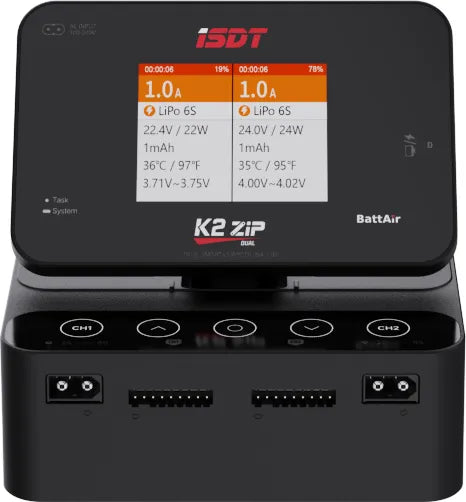

The easy-to-read 2.8" IPS display is easy to read even in sunlight and makes operation easier.

The USB-C ports can be used for software updates and offer the function of charging a smartphone, for example. (USB-C PD up to 65W)

Thanks to its compact design of 133 x 126 x 57.7mm and a weight of only 776g, the K2 Zip is easy to use on the move.

Features of the K2 ZIP:

• Powerful compact 2 channel DUO charger with power supply and direct BattAir support
• Integrated 200W power supply, with direct current up to 2x 500W power!
• Charging current up to 2x 20A, USB-C PD port up to 65W, 2-8s LiXx
• Ideal for home use at 230V or on the go at 10-30V DC
• 1.5A balance current, up to 800W charging power in parallel mode

• Scope of delivery: power cable, manual, display foil, iSDT sticker
• Charging current adjustable per output: 0.2-20A
• Balancer current per output: 1.5A
• Input voltage: 100-240V AC, 10-30V DC
• Length (mm): 133
• Discharge power per output: 15W
• Max. number of NiCd/NiMH batteries: 2-18
• Plug type input: 230V AC, XT60 DC
• Max. voltage lead batteries: 28V
• Max. charging current: 2x 20A
• Max. Power: 2x500W DC, 200W AC
• Max. discharge power: 30W
• Max. charging power on one output: 500W DC
• Max. number of LiHv cells: 8
• Max. number of LiPo cells: 8
• Charging power Max Syncron: 800W
• Input current limit: DC 35A
• Power supply integrated: Yes
• Connector type charging output: XT60
