Giving upto 250W / 35A of discharging power in a stand alone unit.

SIMPLE, ROBUST, AND POWERFUL

Upgraded from BD200, BD250 is not only a powerful discharging device but also a precise measurement tool for battery capacity. It takes the guesswork out of choosing the good-performance battery for your application. BD250 offers a maximum of 250 Watts/35 Amps to discharge your battery and will test virtually any battery type or size, any chemistry cells. It's stylish but small with a high-performance cooling system and uses MOSFETS from the well-known IXYS, to make sure it can discharge at 250 watts continuously.

Battery Discharger & Analyzer

It displays real-time battery voltage, discharged capacity and discharge current.
It can test battery capacity that helps select batteries with the desired capacity.
It saves time when users wish to store their large capacity batteries.
It helps activate the best performance of your batteries for competition.

Specifications

Size and Weight

Dimension: 136.6x104.8x107mm
Weight: 879g

Power

Accepted Voltage Range: 5.40-35.00V (Not suitable for 1S LiPo's)
Low Voltage Alert: <5.2V
High Voltage Alert: >35V Max.
Discharge Power: 250W

Discharge

Discharge Current Range: 0.01A-35.00A
Discharge Power: 250W

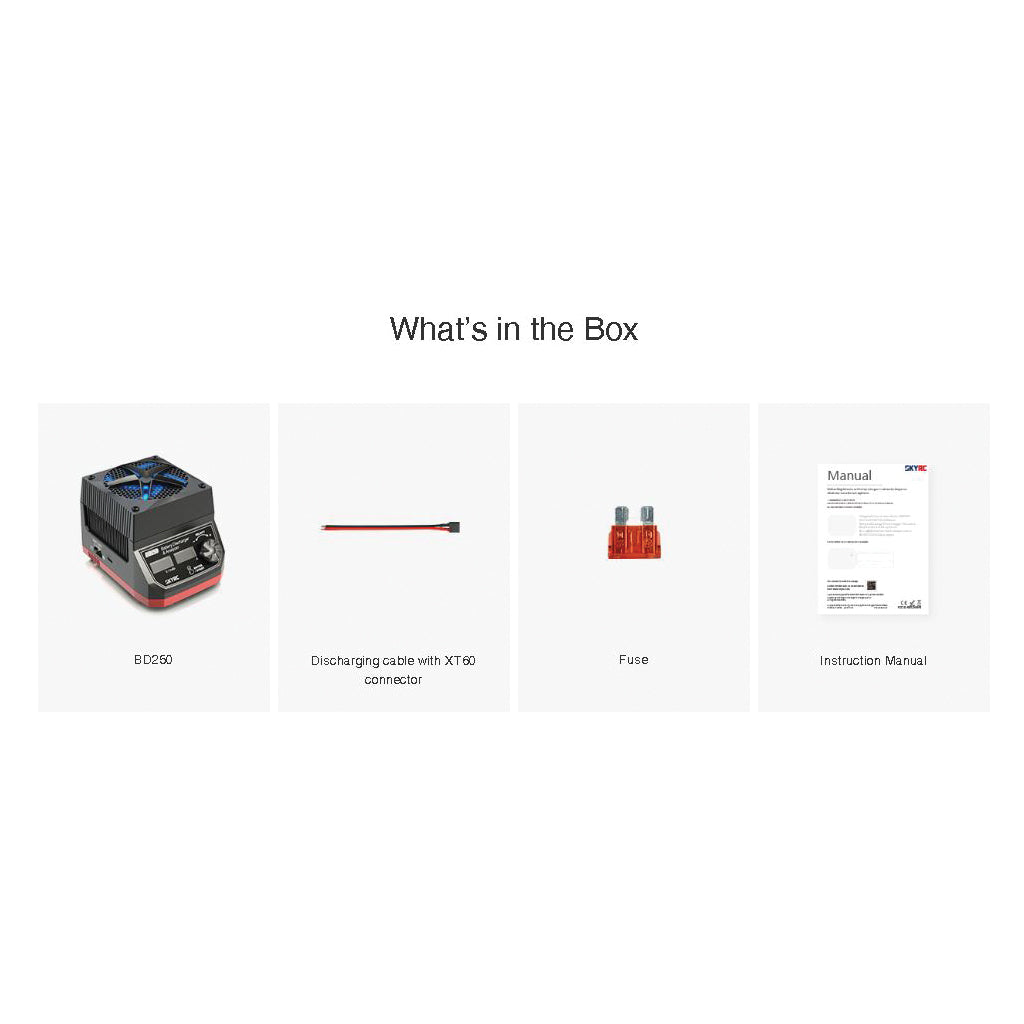

Includes; discharger, discharging cable with XT60 connector, spare fuse and instructions.
